IP67-rated, motor-mounted VFD power for wet, dusty and high-vibration duty

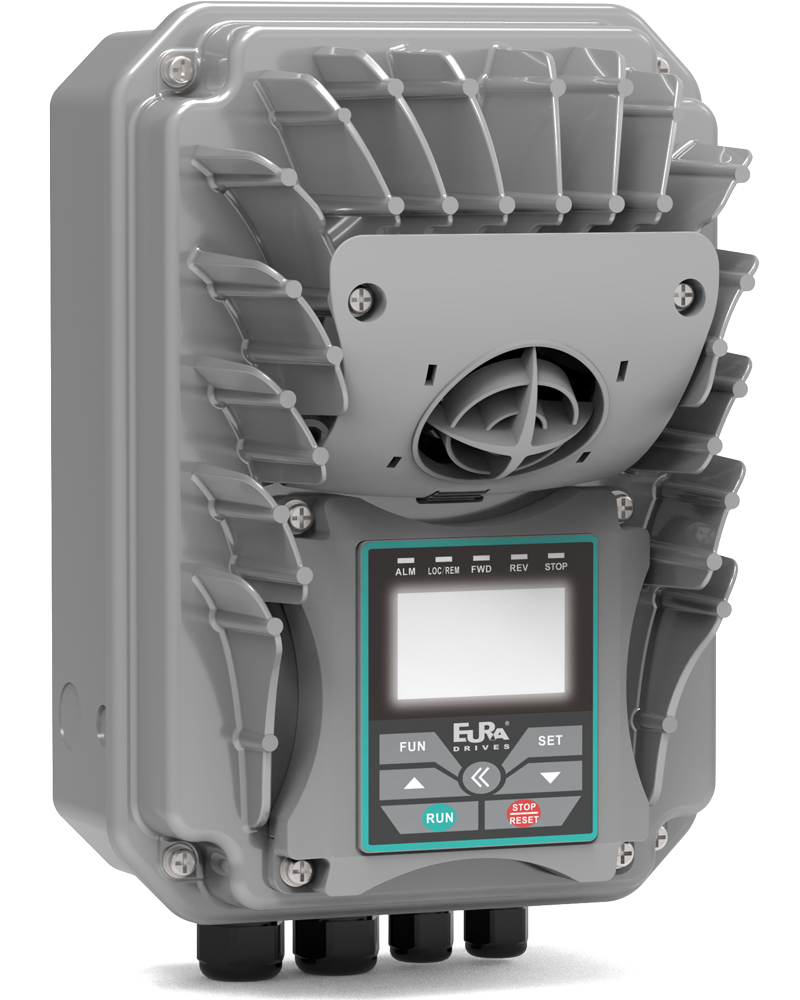

The EM30 is a motor-drive integrated variable frequency drive engineered to mount directly onto the motor it controls, eliminating cabinet installation and long motor cables. Housed in a die-cast aluminum enclosure with anti-fingerprint finish, it delivers IP66/IP67 protection and 4g vibration resistance, making it suitable for humid, dusty and high-vibration environments where conventional drives cannot survive. Its open-type heatsink ensures reliable cooling and easy cleaning, and the fan is pluggable for quick service.
Available from 0.4 kW to 11 kW in three voltage classes, the EM30 supports both induction motors (VVVF and sensorless vector control) and permanent magnet synchronous motors (SVC), with speed and torque control modes. It delivers 150% starting torque at 0.5 Hz, a 1:100 speed range, ±0.5% steady-speed accuracy and a torque response under 20 ms — performance suitable for demanding loads.
Designed around pump and fan applications, it includes built-in PID closed-loop control, dry-run and pressure protection, master-slave water supply control and time-period scheduling. A brake unit is built in, EMC C2/C3 filters are optional, and it carries CE certification. The segment LCD or four-line LCD keypad can be installed in four orientations, with Bluetooth and IP67-dedicated panel options.
Fully sealed die-cast aluminum housing operates in humid, dusty and vibrating environments.

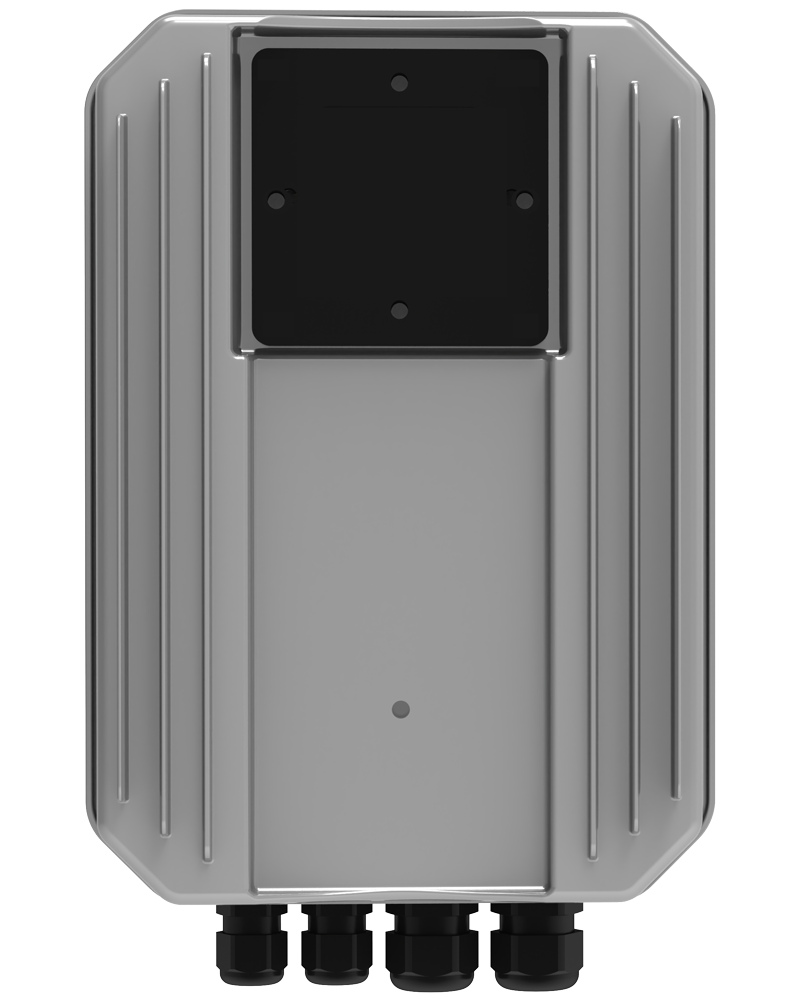

Mounts directly on the motor via EJ-series adapter plates, or wall-mounts with an optional bracket; split top/bottom cover for easy wiring.
Asynchronous (induction) motors with VVVF/SVC control and permanent magnet synchronous motors with SVC.
0.5 Hz / 150% starting torque, 1:100 speed range, ±0.5% speed accuracy, <20 ms torque response.
Built-in PID, dry-run and pressure protection, water-supply master-slave control, time-period control and sleep functions.

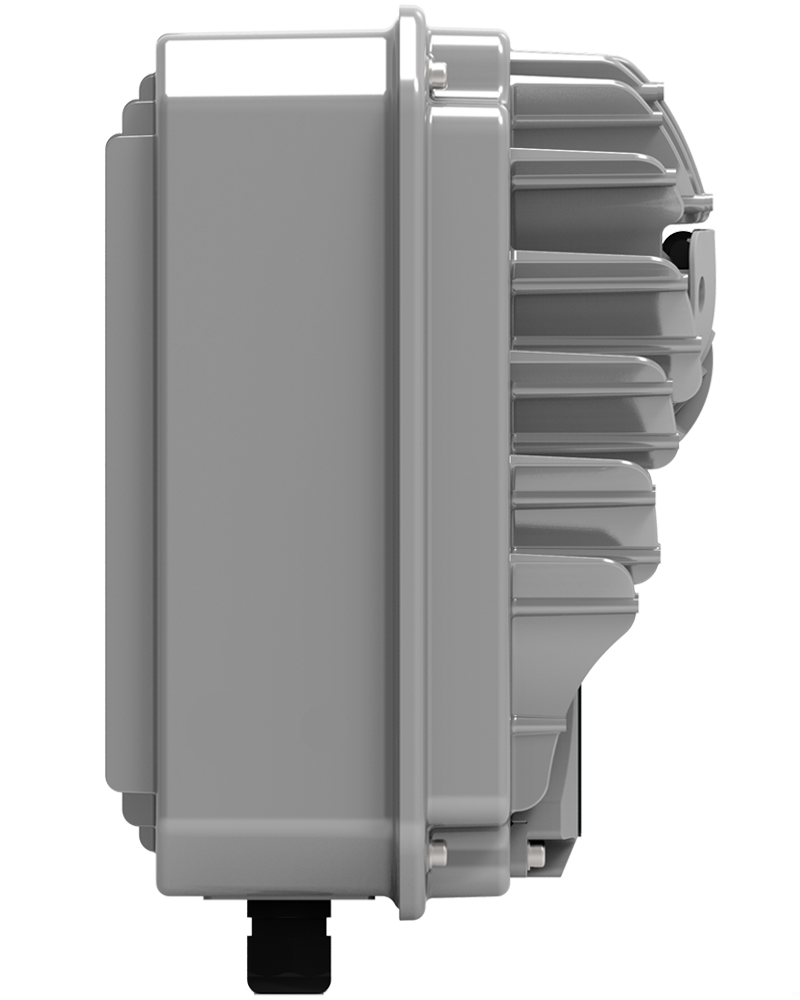

Integrated brake unit (external resistor), pluggable fan and open heatsink for easy cleaning and maintenance.

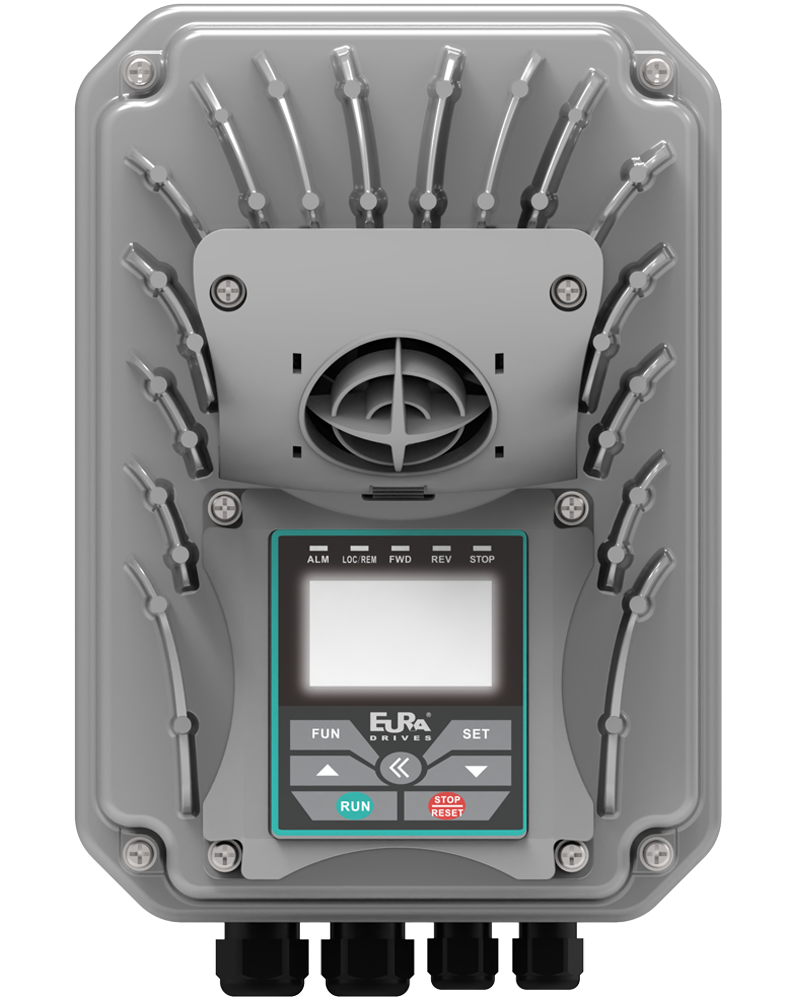

Segment or 4-line LCD keypad installable in 4 orientations, Bluetooth option, parameter copy unit, Modbus communication.
Full protection set with optional EMC C3 filter; CE certified (J0/J1 UL-capable; STO option on J0).
| Power range | 0.4 – 11 kW (adapted motor power) |
|---|---|
| Input voltage | 1-phase 220–240 V; 3-phase 220–240 V; 3-phase 380–480 V; 50/60 Hz |
| Output frequency | 0.50 – 590.0 Hz (≤500 Hz in vector control) |
| Overload capacity | 150% for 60 s |
| Efficiency | ≥ 93% |
| Control modes | Induction motor VVVF / SVC; PM synchronous motor SVC; speed and torque control |
|---|---|
| Starting torque | 150% at 0.5 Hz (SVC) |
| Speed range | 1:100 (async SVC); 1:20 (PMSM SVC) |
| Steady-speed accuracy | ±0.5% |
| Torque response | < 20 ms; torque control accuracy ±5% |
| Carrier frequency | 0.8 – 16 kHz (fixed or random) |
| Analog I/O | 2 × AI (0–5 V / 0–10 V / 0–20 mA), 2 × AO |
|---|---|
| Digital I/O | 5 × DI + 1 high-speed pulse input (100 kHz), 1 × DO, 2 × relay outputs |
| Communication | Modbus |
| Keypad | Segment LCD or 4-line LCD, 4-way mounting, Bluetooth option, IP67-dedicated panel |
| Protection rating | IP66 / IP67; vibration 4g |
|---|---|
| Protection functions | Phase loss, overcurrent, overload, overheat, ground short, dry-run, pressure protection and more |
| Housings | J0: 240×157×151 mm; J1: 270×190×165 mm; J2: 338×228×193.5 mm |
| Environment | −10 to +40 °C, ≤90% RH, altitude ≤1000 m |
| Certification | CE (J0/J1 satisfy UL); STO available on J0 |
Not sure which model fits your machine? Contact us with your application details — our team will recommend the right drive, motor and options.
